A scuba tank carrier by Shark Bite Scuba®

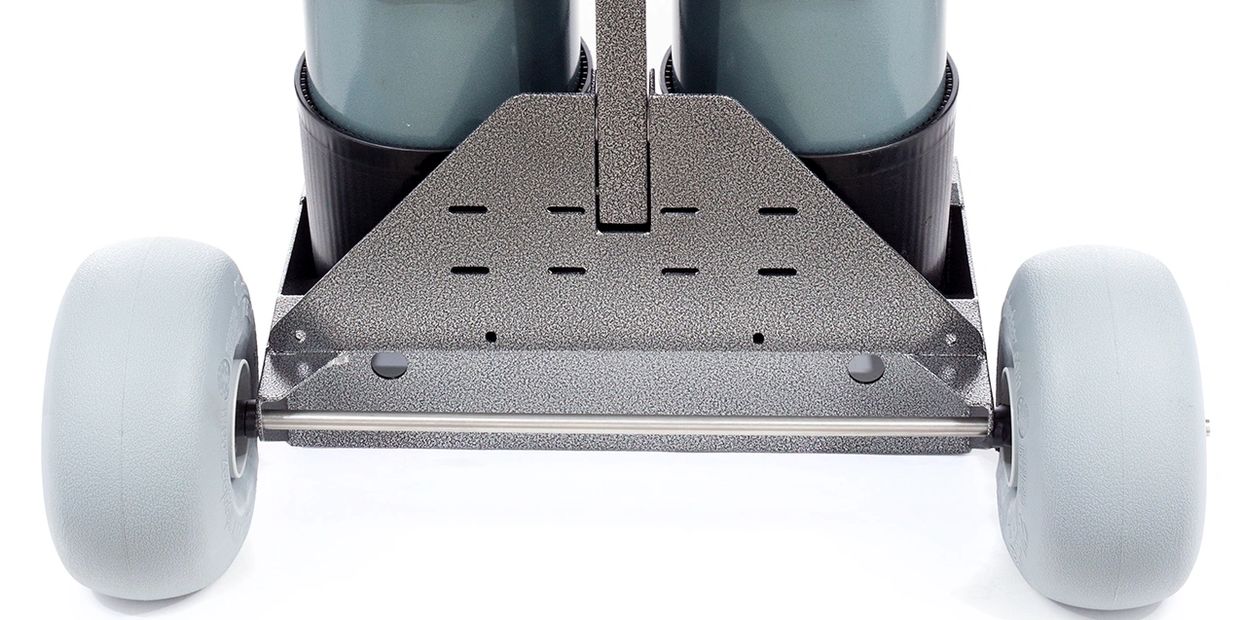

The Sand Tire Tank Dolly®

An effective Sand Tire must be pneumatic, low-pressure, and pliable to stay on top of the sand

The Sand Tire Tank Dolly® is specifically designed to float on top of a soft surface such as deep soft sand, snow, and mud



The Sand Tire widens its footprint and evenly distributes the weight when placed under a load



No bearings or lubricant to attract sand or dirt to create wear



A hard tire will absolutely sink into soft sand, snow, and mud



The Sand Tire is also known as a Balloon Tire



Sand Tire special order option (uncommon requirement); Maximum payload (set of tires) 242 pounds (110 kg); 11.8D x 7W inches (29.9D x 17.7W cm) Email us for details

Puncture-resistant, heavy-duty, and provides maximum vibration dampening and shock absorption

  • The Sand Tire traverses an asphalt parking lot, concrete sidewalk, curbs, and stairs

  • Rocky trail, gravel road, a dirt path with potholes, and, a wet boat ramp

  • Mud, snow, and deep, soft sand

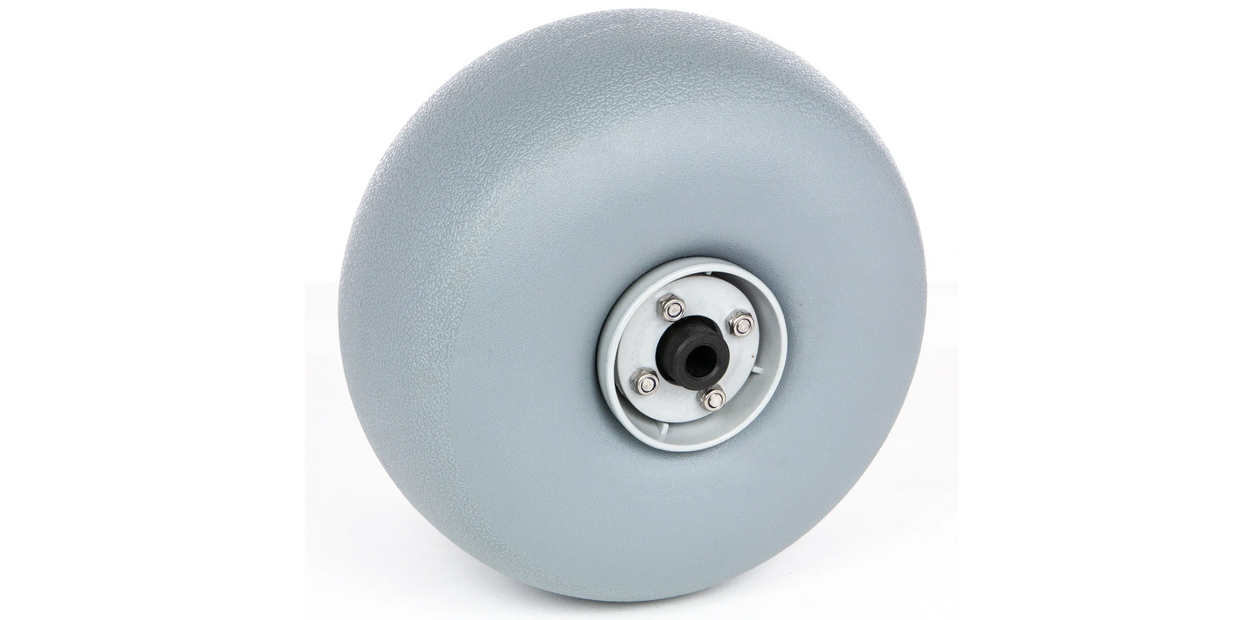

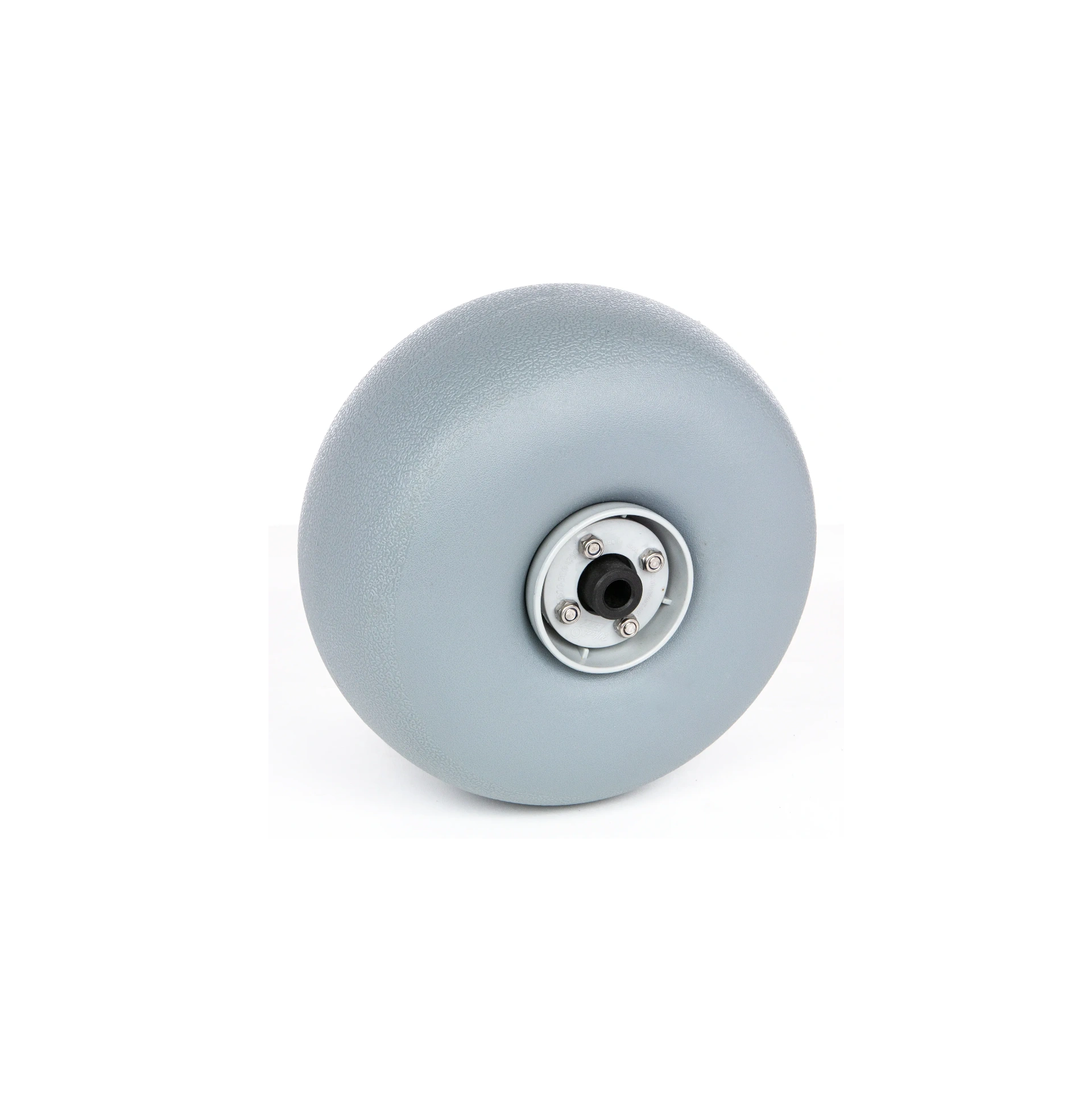

The Sand Tire specifications

The Sand Tire was engineered for the harshest marine environment

  • Modular design allows individual components of the tire to be repaired or replaced

  • Dimensions: 9.4D x 4.8W inches (23.8D x 12.2W cm)

  • Set of Sand Tires: 176 pounds (80 kg) maximum payload

  • Pressure range: 2 to 4 psi (0.14 to 0.28 bar)

  • Temperature range: 5° to 167 °F (-15° to 75 °C)

  • Hub diameter: 0.5 inch (1.27 cm)

  • Valve: Bike-style Schrader valve with cap

⚠️ Use a low-pressure hand pump to avoid damaging the tire


Material:

  • Tire material: Polyurethane

  • Nuts and bolts: 316 stainless-steel

  • Hub material: High strength polypropylene and stainless-steel hardware

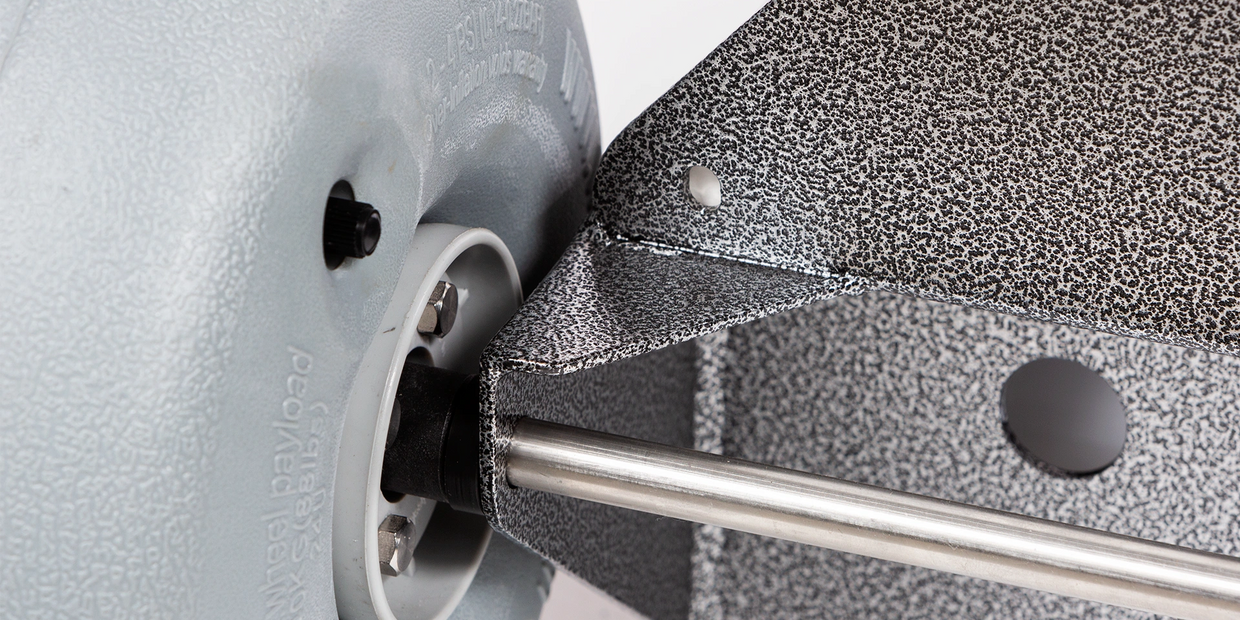

The Sand Tire Axle

The axle supports over 350 pounds (159 kg) ⏤ You won't bend it!

  • Diameter: 0.5 inch (1.2 cm)

  • Length: 29 inches (73.6 cm)

Material:

Axle: Solid 304-stainless-steel


The Sand Tire is puncture resistant

⚠️ This link will redirect you to Wheeleez.com website

  • In the unlikely event a puncture occurs, the Sand Tire can be repaired with a soldering iron Learn more

  • Wheeleez, inc. is the manufacturer of the Sand Tire and All-Terrain Tire

The Sand Tire repair video is produced by Wheeleez, Inc., not Shark Bite Scuba®
